General

• ShellMetal material, fan-free design
• Net Weight0.8 kg (1.76 lb)
• Gross Weight1.3 kg (2.87 lb)
• Dimensions (W × H × D)52.0 mm × 140.0 mm × 110.0 mm (2.05” × 5.51” × 4.33”)
• Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48VDC, 3.13A
• Max. Power Consumption250 W
• Power Consumption in Idle10 W
• Installation ModeDesk-Mounted
• Surge Protection6 KV

Network Parameters

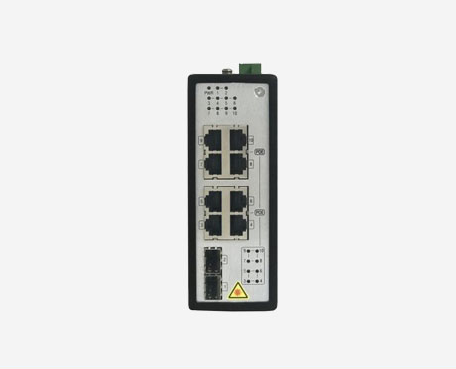

• Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table4 K
• Switching Capacity20 Gbps

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget240 W

Approval

• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
